EdgeRouter · BFi53ER0 / BFi53ER0S

Your field devices, on the building network.

A PoE-powered edge gateway with Bluetooth 5.3 and 10/100 Ethernet: RS-485 Modbus and analog and digital I/O on the BFi53ER0, DECT NR+ on the BFi53ER0S. What it does is set by the firmware it ships with. Made in Taiwan.

Buy a unit → Hardware specification Manuals

BFi53ER0 / BFi53ER0S EdgeRouter IoT edge gateway

up to +13 dBmBluetooth 5.3 · front end

+21 / +19 dBmDECT NR+ · BFi53ER0S

PoE+One cable, power and data

−40 ~ +105 °CCore module BFi53MLG

Choose the firmware

Choose the job, then the part number.

One hardware, one firmware per unit — installed at the factory and fixed at purchase.

Long-term care room where battery-free call buttons report to the gateway

BFi53ER0-BF Battery-Free Bluetooth Gateway Battery-free Bluetooth switches and sensors, delivered as JSON and as Modbus registers — with RS-485, field I/O and microSD logging in the same box. Available →

Semiconductor fab where RS-485 sensors are read as Modbus TCP

BFi53ER0-MB RS-485 to Modbus TCP Modbus RTU sensors bridged over Bluetooth Mesh and read as Modbus TCP; battery-free switches and sensors join the Mesh too. In service →

Architecture illustration: your Ethernet network carries Thread to the BFi53ER0-TN EdgeRouter, which controls luminaires and switches over Bluetooth NLC; PREVIEW

BFi53ER0-TN Thread over Ethernet & Bluetooth NLC Lighting control with Thread, carried over Ethernet. PREVIEW on request →

Two models

One design, one enclosure, two builds.

BFi53ER0

Bluetooth 5.3 LE with front-end module
RS-485 Modbus · 2× 0–10 V in / out
24 V digital I/O — 4 out, 2 in
10/100 Ethernet · PoE+ or 14–32 V DC

In stockOrder →

BFi53ER0S

Bluetooth 5.3 LE with front-end module · 10/100 Ethernet · PoE+ or 14–32 V DC
+ DECT NR+ radio, our own ETSI TS 103 636 stack
Multi-hop sensor backhaul from BFi91XTD nodes
Second SMA antenna
Terminal assignment to be announced.

Pre-orderPre-order →

Documentation

Manuals and specifications.

The Quick Start, the User Manual, the hardware specification and the example code download directly; for the System Integration Guide, leave your company details in a short form.

Documentation & downloads →

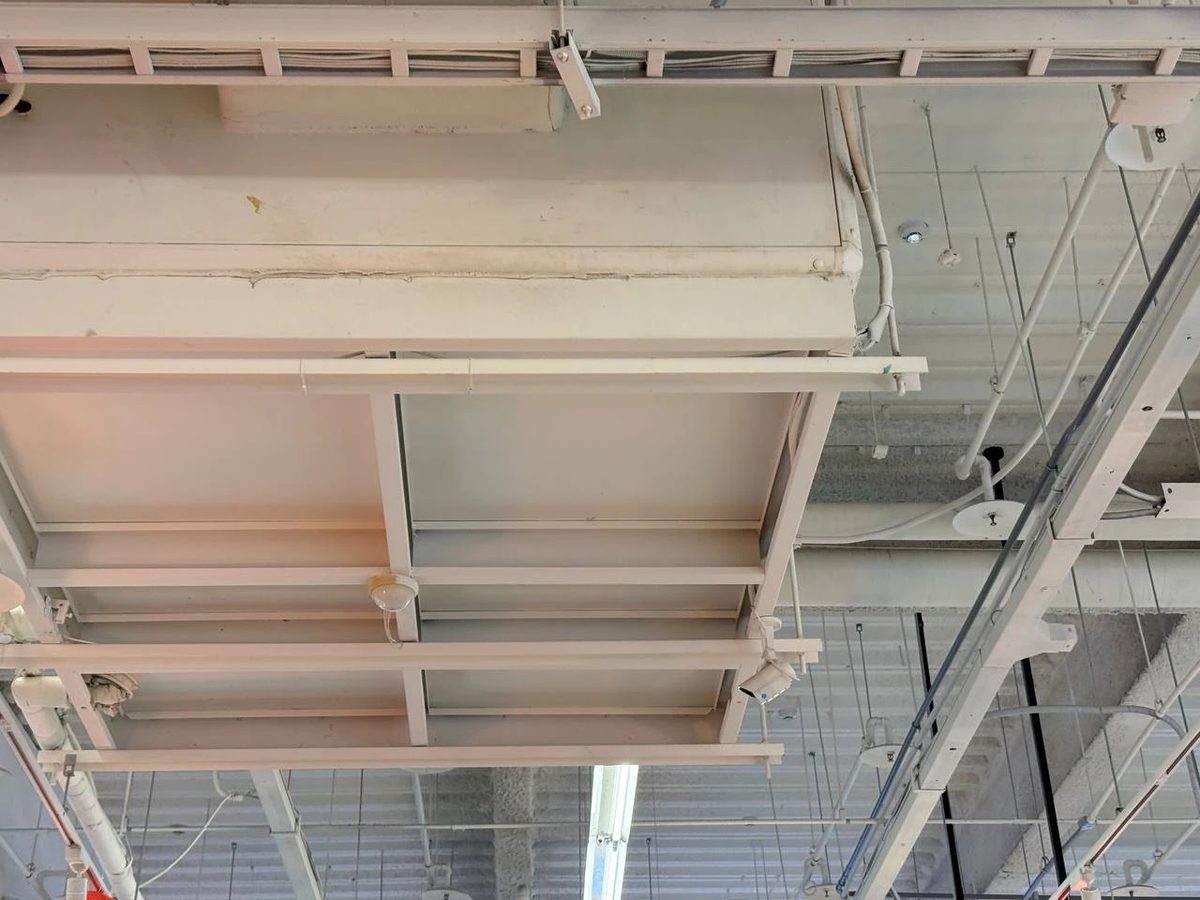

Hypermarket trading-floor ceiling with an air-handling unit and ductwork

In service

Thirty-four air handlers onto one Modbus TCP stream.

A hypermarket in Taoyuan, Taiwan, retrofitting its chilled-water plant across two trading floors while they stay open.

The site: 17 air-handling units per floor; two-way valves on every chilled-water branch and fan-coil unit.
The control: Outside-air free cooling and CO₂-based ventilation, following occupancy rather than a timer.
The EdgeRouter: Modbus RTU master on RS-485, serving the same points as Modbus TCP over one PoE+ cable.

We name a customer only when they ask us to.

Before you specify it

Good to know.

Bluetooth Mesh + DECT NR+ together: not yet tested. Each is verified on its own; tell us if you need both on one unit.
BFi53ER0S terminal assignment to be announced. The terminal block described on these pages is the BFi53ER0’s.
No ingress rating. Outdoors, fit it in a sealed NEMA / IP cabinet.
DECT NR+ not yet US-certified. Approval status for your country is confirmed in writing before shipment.
No DECT NR+ range figure. Our tests are over the air in the lab.
BFi53ER0S power is estimated. The measured figure follows the power-load test.
No native BACnet. On a BACnet/IP site it sits behind a BACnet-capable controller.
Not a control or safety device. Interlocks stay in the local PLC.

Put one on your bench.

Start with a unit; talk to us when there is a project.

Buy a unit → Talk to us about a project OEM & services

Built on Nordic Semiconductor silicon · FLSEMI is a Nordic Semiconductor Solution Partner
